Timber Joist Hanger 50mm to 100mm

£1.30£1.56

Standard Timber to Timber Hangers.

A quick and safe method of joist trimming for light, medium and heavy applications such as supporting floor joists, trimming stair wells, and underslung joists. They have increased hole center’s to spread load over greater area.

Pack Type: Single| Pack Quantity: 1 Piece

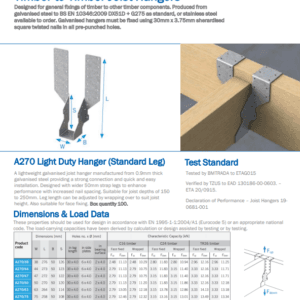

A lightweight galvanised steel joist hanger providing a strong connection and quick and easy installation. Designed with wider 50mm strap legs to enhance performance with increased nail spacing. Suitable for joist depths of 150 to 250mm. Leg length can be adjusted by wrapping over to suit joist height. Also suitable for face fixing.

  • Material – Produced from 0.9mm thick galvanised steel to BS EN 10346:2009 DX51D + G275 as standard, or stainless steel available to order.

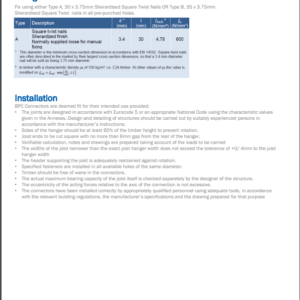

  • Fixing – Fix using either Type A or Type B fixings in all pre-punched holes:
    • Type A, 30mm x 3.75mm Sheradised Square Twist Nails usually supplied loose for manual fixing.
    • Type B, 35mm x 3.75mm Sheradised Square Twist Nails usually collated for nail gun fixing.

A quick and safe method of joist trimming for light, medium and heavy applications such as supporting floor joists, trimming stair wells, and underslung joists. They have increased hole centres to spread load over greater area.



Click below to go to our quote form, one of the team will get back to you as soon as they receive it.

Delivery Question?

We provide delivery services to Mainland Scotland and the West of Scotland regions. If you reside outside of these areas, we offer alternative delivery options. Please reach out to us by filling out the form below with your address and details of the products you need delivered. Our team will promptly respond with further information and updates regarding the delivery process and cost.






    Imperial (inches) Actual (mm) Conversion (mm)
    1 25.4 25
    2 50.8 50
    3 76.2 75
    4 101.6 100
    5 127 125
    6 152.4 150
    7 177.8 175
    8 203.2 200
    9 228.6 225
    10 254 250
    11 279.4 275
    12 304.8 300
    24 (2ft) 609.6 600
    36 (3ft) 914.4 900
    48 (4ft) 1219.2 1200
    60 (5ft) 1524 1500
    72 (6ft) 1828.8 1800
    84 (7ft) 2133.6 2100
    96 (8ft) 2438.4 2400
    Dimensions N/A
