Long Leg Timber Joist Hanger 150mm

£5.02

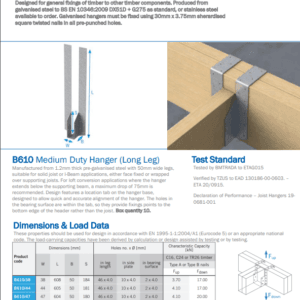

Long Leg Timber to Timber Hangers.  Manufactured from 1.5mm thick pre-galvanised steel with 50mm wide legs, suitable for solid joist or I-Beam applications, either face fixed or wrapped over supporting joists.
Pack Type: Single| Pack Quantity: 1 Piece
 W 150 x L  596 x  B 50 x  S 172mm

A medium duty, long leg hanger with 50mm wide legs, suitable for solid joist or I-Beam applications, either face fixed or wrapped over supporting joists. For loft conversion applications where the hanger extends below the supporting beam, a maximum drop of 75mm is recommended. Design features a location tab on the hanger base, designed to allow quick and accurate alignment of the hanger.

  • Material – Produced from 1.5mm thick pre-galvanised steel to BS EN 10346:2009 DX51D + G275 as standard, or stainless steel available to order.

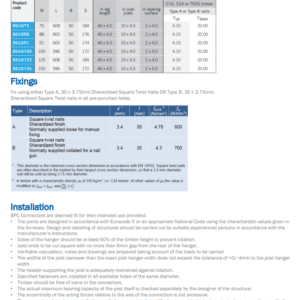

  • Fixing – Fix using either Type A or Type B fixings in all pre-punched holes:
    • Type A, 30mm x 3.75mm Sheradised Square Twist Nails usually supplied loose for manual fixing.
    • Type B, 35mm x 3.75mm Sheradised Square Twist Nails usually collated for nail gun fixing.
B610/150 W 150 x L  596 x  B 50 x  S 172mm

Click below to go to our quote form, one of the team will get back to you as soon as they receive it.

Delivery Question?

We provide delivery services to Mainland Scotland and the West of Scotland regions. If you reside outside of these areas, we offer alternative delivery options. Please reach out to us by filling out the form below with your address and details of the products you need delivered. Our team will promptly respond with further information and updates regarding the delivery process and cost.






    Imperial (inches) Actual (mm) Conversion (mm)
    1 25.4 25
    2 50.8 50
    3 76.2 75
    4 101.6 100
    5 127 125
    6 152.4 150
    7 177.8 175
    8 203.2 200
    9 228.6 225
    10 254 250
    11 279.4 275
    12 304.8 300
    24 (2ft) 609.6 600
    36 (3ft) 914.4 900
    48 (4ft) 1219.2 1200
    60 (5ft) 1524 1500
    72 (6ft) 1828.8 1800
    84 (7ft) 2133.6 2100
    96 (8ft) 2438.4 2400
    Dimensions 150 × 596 × 50 mm
